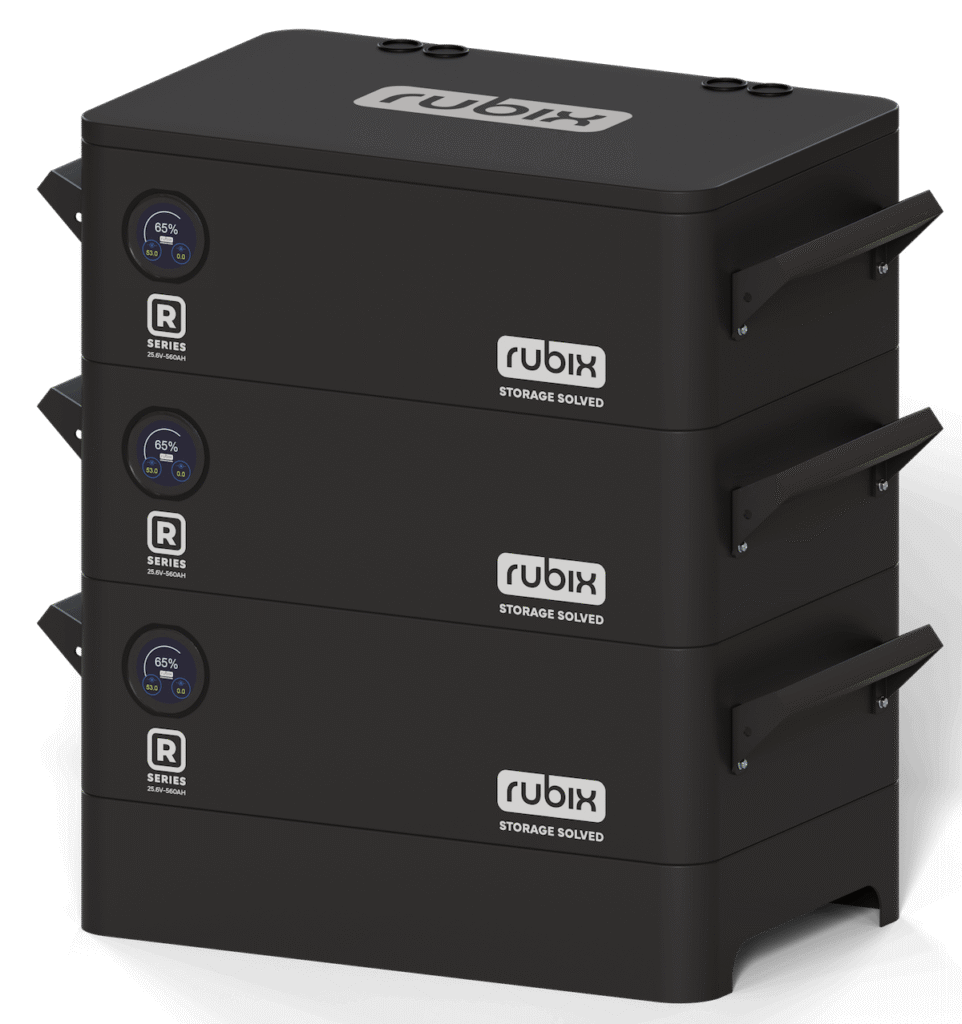

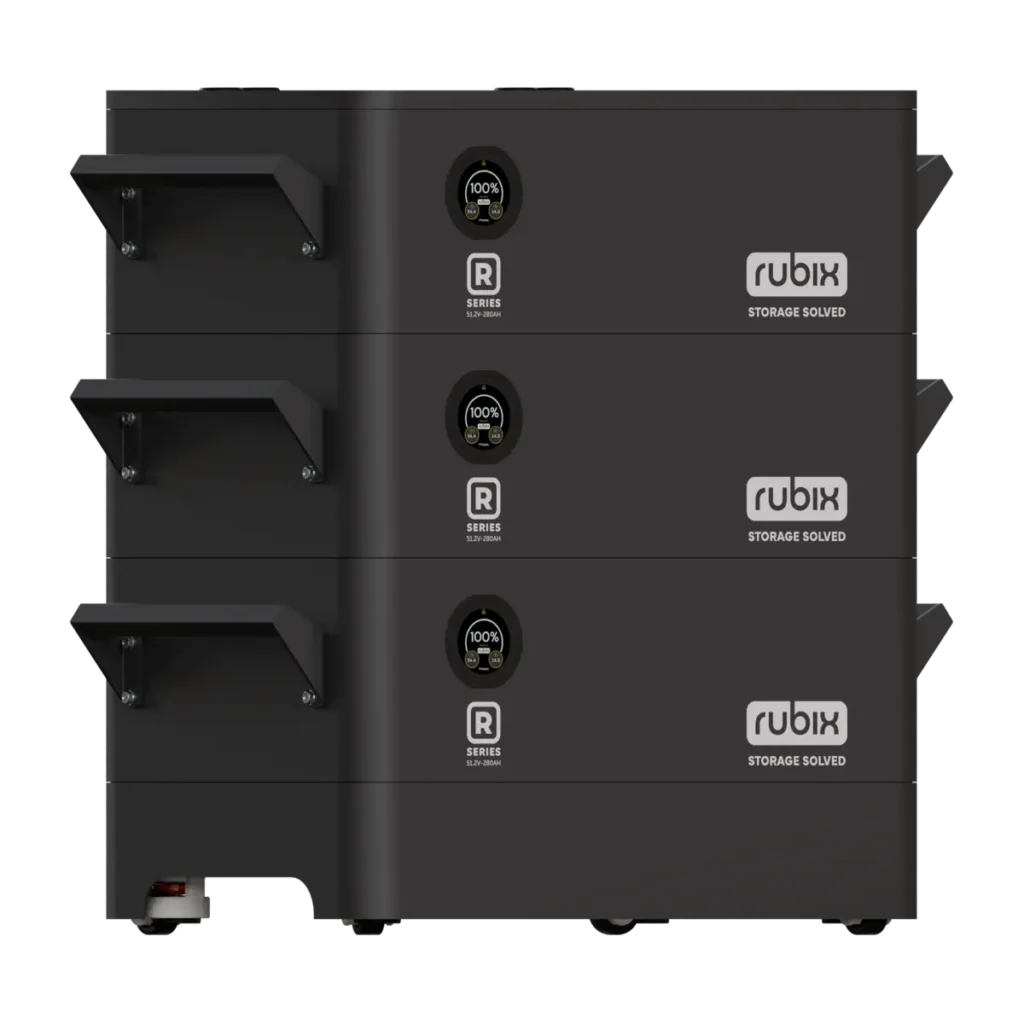

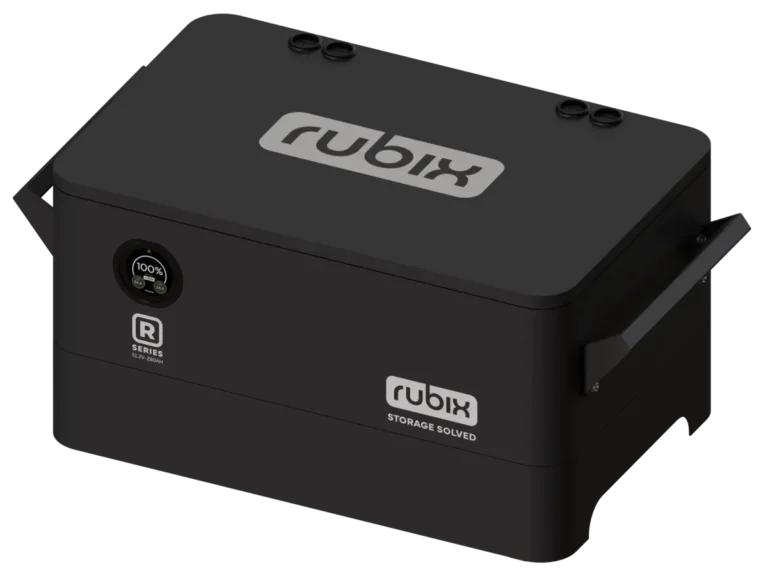

R-Series

High-Capacity Solar Battery Stack

Rubix R-Series delivers high-capacity solar battery storage for demanding energy applications. It gives you durability, reliability, and scalability when it matters most. Designed for larger systems and off-grid use, the R-Series delivers capacity at a lower cost per kilowatt-hour, without sacrificing dependable performance. Available in 24V 560Ah (RRS25560) and 48V 280Ah (RRS51280) configurations, the R-Series can expand to 32 batteries in parallel for up to 457kWh of capacity without sacrificing performance or system simplicity.

Built for Demanding Energy Storage Systems

The R-Series is designed for dependable energy storage and substantial capacity. Its LiFePO4 chemistry provides a durable foundation for residential, commercial, and off-grid power storage systems day after day. With closed-loop inverter communication, the batteries can work seamlessly with compatible equipment to help maintain consistent system performance.



The R-Series offers a practical way to add high-capacity solar battery storage without driving up the cost of every additional kilowatt-hour. Its ability to operate with multiple batteries in parallel makes it well-suited to projects that need more storage than a single battery can provide.

Features & Benefits

The R-Series combines high-capacity LiFePO4 cells with robust design for consistent performance, longevity, and value. Advanced battery management and closed-loop communication ensure stable operation under sustained loads, while modular scalability allows systems to grow without redesign. The R-Series gives you:

  • High-capacity modules for bulk energy storage
  • Designed for off-grid, agricultural, and large-scale applications
  • Proven Impactiv Balancing™ backed by years of R&D
  • Premium LiFePO4 chemistry for safety and stability
  • Simplified feature set focused on value—not excess certifications
  • This is storage built to work hard, run long, and cost less per kWh
  • 10-Year Warranty

Model: RRS25560
Nominal Voltage: 25.6V
Capacity: 560Ah
Energy Storage: 14.3 kWh
Maximum Continuous Output: 200A
Dimensions: 35.94 × 19.53 × 9.45 in (91.3 × 49.6 × 24.0 cm)
Weight: 271 lbs (122.9 kg)
Cycle Life: 4,500 cycles @ 80% DoD
Certifications: UL 1973
Warranty: 10 years

Model: RRS51280
Nominal Voltage: 51.2V
Capacity: 280Ah
Energy Storage: 14.3 kWh
Maximum Continuous Output: 200A
Dimensions: 35.94 × 19.53 × 9.45 in (91.3 × 49.6 × 24.0 cm)
Weight: 271 lbs (122.9 kg)
Cycle Life: 4,500 cycles @ 80% DoD
Certifications: UL 1973
Warranty: 10 years

r series battery detail of back of batter stack

Inverter Compatibility

The R-Series is compatible with a range of major inverter brands, including:

  • Sol-Ark
  • Schneider Electric
  • Megarevo
  • MidNite Solar
  • Deye
  • EG4
  • Victron Energy
  • Outback Power
  • SRNE Solar
  • Magnum Energy

Product Documents

2026 Rubix R-Series 24 Spec Sheet

R-Series 24V Spec Sheet

2026 Rubix R-Series 48 Spec Sheet

R-Series 48V Spec Sheet

2026 Rubix R-Series Sell Sheet 2-0

R-Series Sell Sheet 2.0

2026 R-Series Owners Manual

R-Series Owner’s Manual

2026 R-Series Warranty

R-Series Warranty

R-Series Installation Gallery

See the R-Series high-capacity solar battery storage in real-world residential, commercial, and off-grid installations.

Videos

Access installation walkthroughs, setup guidance, and best-practice videos for the R-Series. These videos provide clear, step-by-step support to help ensure successful installs and optimal system performance.

There are no videos for this product yet. Please check back soon as we build out our video library.

Start Small. Go Big.

The R-Series allows you to start with only what you need now and scale efficiently later. Modular expansion up to 32 x Parallel (457kWh) allows the system to grow without forcing infrastructure changes, keeping long-term costs predictable.

r-series batteries stacking animation

Components

Rubix base and lid

Base & Lid

The base and lid provide a secure foundation and protective enclosure for R-Series installations. Designed for durability and proper alignment, they help ensure clean, stable system builds.

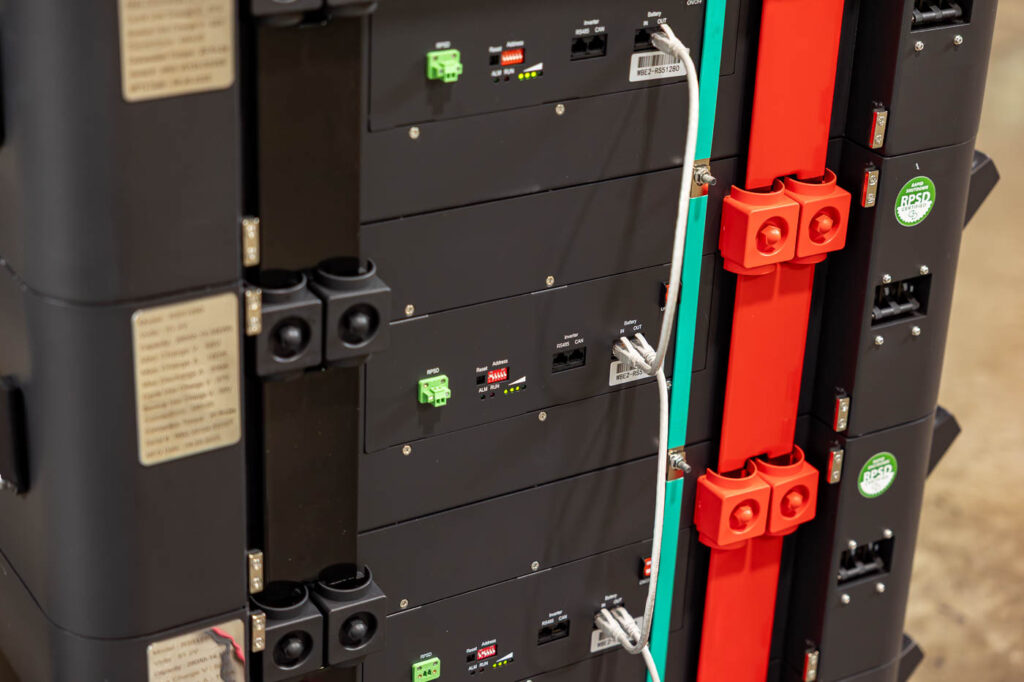

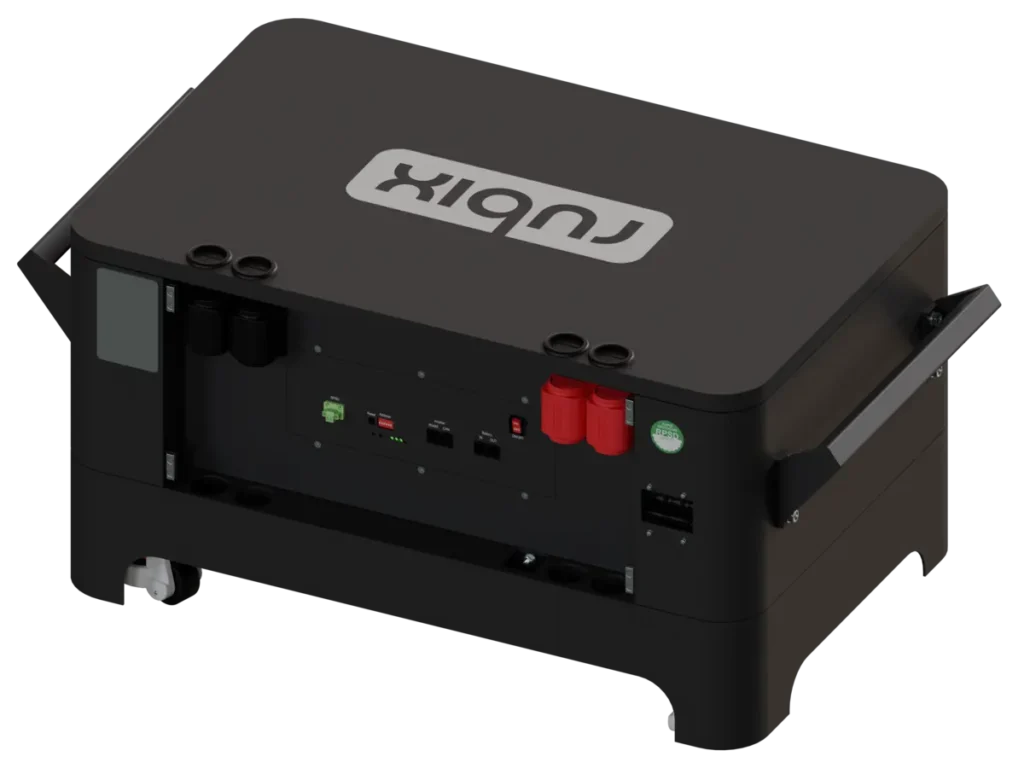

r series battery detail of back of batter stack

Busbars

Busbars allow safe, efficient electrical connections between stacked R-Series batteries. Built for high-current applications, they support reliable power distribution and simplified system assembly.

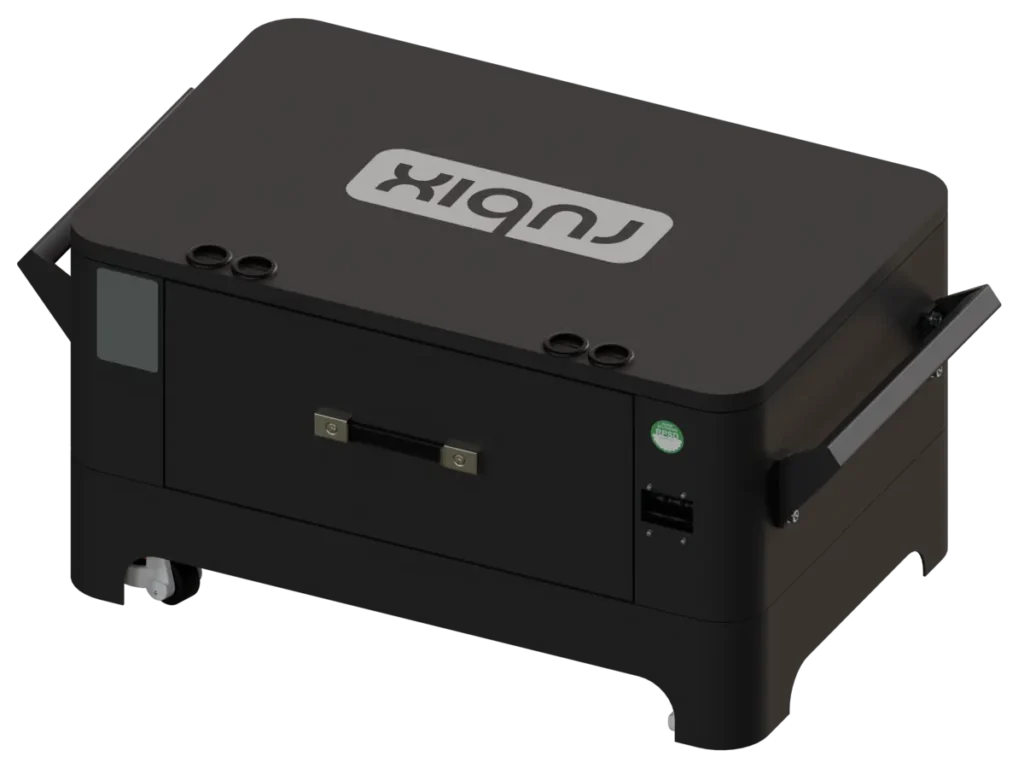

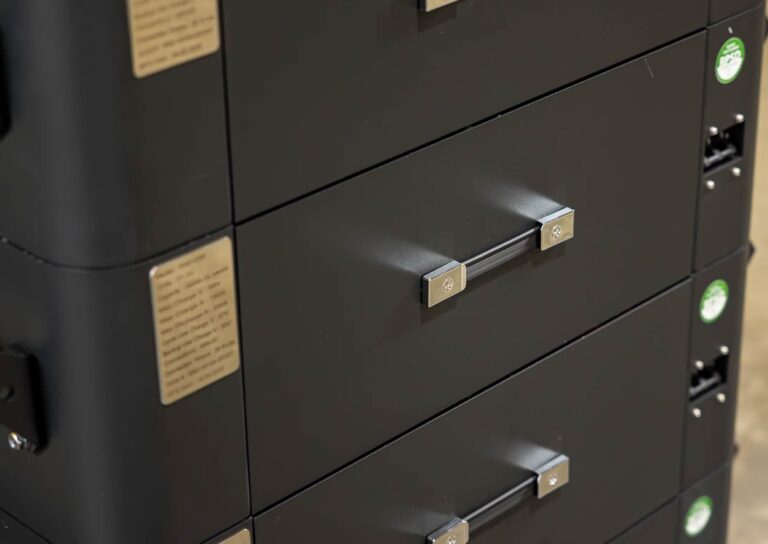

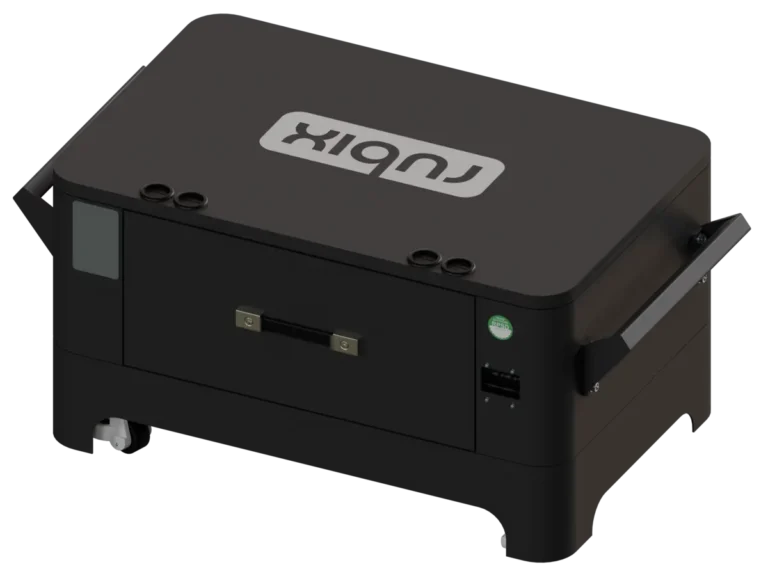

r-series battery rear magnetic cover

Magnetic Cover

The magnetic cover offers quick, secure access to the top of the R-Series system. Its tool-free design allows for easy installation and service while maintaining a clean, finished appearance.
